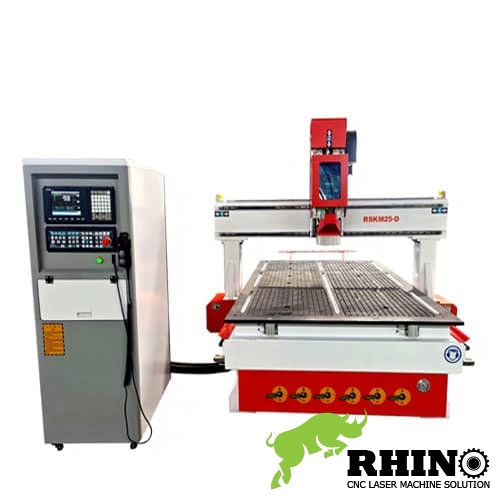

High-Precision Linear ATC CNC Router for Woodworking - RSKM25-D

High-Precision Linear ATC CNC Router for Woodworking - RSKM25-D

Item No.: RSKM25-D

Model:RSKM25-D
FOB Price:
US $8000 - 30000/ Set Get Latest Price
Min.Order Quantity:
1 Set/Sets
Supply Ability:
1000 Set/Sets per Month
Port:
QingDao/YiWu/ShangHai/Guangzhou/NingBo
Payment Terms:
T/T,Western Union,paypal

$9000.00

INQUIRY PDF Format

Description

Maximize Efficiency with RSKM25-D Linear ATC CNC Router

Step into the future of woodworking with the Rhino RSKM25-D, a machine that combines speed, precision, and versatility. Designed for the Australian market, this Linear ATC CNC Router is your solution to complex woodworking tasks.

Seamless Automatic Tool Changing

Equipped with a linear tool magazine, the RSKM25-D ensures quick and seamless tool changes, significantly reducing downtime and boosting productivity. Whether you're working on kitchens, closets, or cabinets, this machine is built to handle diverse woodworking projects with ease.

Unmatched Precision and Stability

With HIWIN30 rails and helical racks, the RSKM25-D offers exceptional precision and stability. Its intelligent TAIWAN Syntec 60WE system and robust structure ensure precise cuts and carvings, making it ideal for high-quality woodworking.

Designed for the Australian Woodworking Industry

The RSKM25-D is specifically designed to meet the needs of the Australian woodworking industry. Its economic pricing, coupled with advanced features, makes it a popular choice among professionals looking for reliable and efficient woodworking solutions.

Advanced Features for Enhanced Productivity

From its fast service support to its dust-proof system and automatic height-adjustable legs, the RSKM25-D is packed with features to enhance your productivity. Its economic price point and high technology make it a valuable addition to any woodworking workshop.

Linear Tool Magazine CNC Router Australia with ATC Function for Woodworking

Rhino ATC WOOD CNC Router RSKM25-D is the most popular model in Australia with linear tool magazine max 20 pcs auto tool changer function,It is with economic
China ATC 9kw air cooling spindle
and professional for wood,aluminum,PVC etc milling and drilling. This ATC CNC Router Australia now with discount price for sale.

Why ATC CNC Router machine RSKM25-D is popular in Australia?

1. This machine is with fast speed for working on wood surface Mostly cutting speed can be 40m/min smoothly

2. RSKM25-D is the upgrading cnc router machine with automatic tool changer which is more convenient to use in woodworking business like kitchens,closets,cabinets etc.

3. Machine program is more intelligent with TAIWAN Syntec 60WE system, Super fast tool changing speed so improve working efficiency.

4. Disc automatic tool changer and linear tool changer two types for your option and max tools holders we can install 20 pcs

5. Linear HIWIN30 rails and helical rack are in the same surface with new structure to make sure machine will not deform after working for a long time

6. For wood carving & cutting precision could be 0.05mm perfectly because machine structure more stable and heavier than ordinary cnc router in market.

7. Automatic height adjust legs,if your ground is not flat machine can be adjusted itself well

8. Whole dust proof system with pipe 30mm diameter to help you keep a more clean working environment

9. Fast service support, if you have any doubts for this machine in operation we give you 7x24 hours fast reply at anytime

10. Economic price so it is highly popular among customers from Australia .

Total rhino ATC CNC Router RSKM25-D is with high technology that increased the stability of working,adn lowered the failure rate,saved energy consumption by 1%,increased production by 3%,inproved the production efficiency and product quality.

The detail components of ATC Wood CNC Router australia RSKM25-D:

7.5kw vacuum pump air cooling tyle with noise reducer to make sure low noise
10. Vacuum pump

We use dust pipr diameter 30mm and dust brush two holes can working together.ATC CNC Router RSKM25-D australia with an independent dust suction and adsorption device, it can absorb the generated wood chips and debris during the processing, maintaining a clean and tidy workbench while providing a good working environment for the carving machine.
9. Dust collector with pipes

We use Germany quality strong cable inside 6 lines make sure many years working no problem. All cables we use are with CE certificate that is more safe to use and reduced failure rate.
8. Cables

Vacuum table with toughness pvc materials with drawing 8 zones. T-SLOT combination also no problem
7. Machine working table

and can better control the processing speed and improve processing efficiencySyntec 60WE system latest version with keyboard and screen whole set .This system has a good engraving intelligent processing program, which can effectively prevent mechanical collisions,
6. Control system

Yaksawa servo motor drivers 850w from Japan Original with shimpo Japan reducer motor instead of gear box make sure higher precision and more stronger strength.
5. Motors and drivers

Italy HSD 9KW ATC spindle with machine with 24 month service for free and 0-18000rpm & 0-24000rpm for option that can cut, engrave, drill, punch, mill multi functions
4. ATC CNC router Spindle

TAIWAN HIWIN25 oringla linear rails from Taiwan for XYZ axis and Germany TBI ball screws in Z axis
3. Working transmission

It is controlled by forth axis from system so can shorten the time of tool changing then improve working efficiency
2. Pneumatic type linear tool magazine push

Linear auto tool changer magazine beside of machine table/behind of machine table/ front of machine table 3 locations for option, so more convenient for your operation.
1. Tool magazine:

ATC CNC Router australia RSKM25-D detail technical parameters:

Number	Description	Parameter
1	X,Y,Z Working Area	1500mmx3000mmx200mm
2	Table Size	1530mm×3140mm
3	X,Y,Z Traveling Positioning Accuracy	±0.03/300
4	X,Y,Z Repositioning Accuracy	±0.03mm
5	Table Surface	Vacuum and T-slot Combined (Option: T-slot table)
6	Frame	Welded structure
7	X, Y Structure	Rack and Pinion Drive, Hiwin Rail Linear Bearings
8	Z Structure	Hiwin Rail Linear Bearings and Ball Screw
9	Automatic tool changer	Linear type（disc type for option)
10	Pieces of tool changer	12 pieces
11	Max. Working Speed	40000mm/min
12	Spindle Power	ATC 9.0 kw
13	Spindle Speed	0-24000RPM
14	Drive Motors	Yaskawa servo motor 850W or Delta servo motor drivers
15	Working Voltage	AC 380V/50/60Hz,3PH
16	Command Language	G Code
17	Operating System	Syntec Control System 60WE
18	Computer Interface	Ethernet, CF Card
19	Flash Memory	512M(U Disk)
20	Collet	ER32
21	X,Y Resolution	<0.03mm
22	Software Compatibility	Type3/UcancameV9 software
23	Running Environment Temperature	0 - 45 Centigrade
24	Relative Humidity	30% - 75%
25	Packing Size	3500X2250X2200mm
26	N.W.	1800KG
27	G.W.	2000KG
28	Delivery time	14-20 working days

Optional parts of ATC CNC Wood Router:

1. Italy HSD 9KW air cooling spindle/Hiteco 9.0kw ATC spindle

2. Leadshine/Panasonic/Delta or other brand servo

3. OSAI/WEIHONG etc other control system

4. PMI rails 30

5. Machine structures can be made as per your drawing

6. Machine color can be made as per your needs

Packing list together with machine you will get :

Item	Quantity	Remark
Tools -engraving bits	10 pcs
Tools-cutting bits	10 pcs
Tools-treading bits	10 pcs
Tools-wooden bits	1 box
MDF board	3 pcs	Ever size 1500mmx1000mm
ISO tool holder chuck	8 pcs
Dust collector	1 set
Vacuum pump	1 set
Leveling the base	6 pcs
Tool collect	8 pcs
Limit sensor	1 pcs
Spindle tools	1 set
Seals for vacuum pump	1 set

Machine detail photos:

ATC CNC Router detial components:

1. HIWIN30 linear squar rails and helical rack pinion along with double Y axis to make sure machine working many years no deformation and working percision perfect still.

2.Automatic oil box 3. Automatic tool sensor

4. Linear tool changing magazine 8 pieces at behind of machine table with auto tool sensor together to save time of every tools height setting .

5. Syntec 60WE latest version for ATC function more intelligent and ultra reaction speed.

6. ATC spindle 9kw air cooling spindle ISO30 tool holder

7. Pneumatic automatic air jack around of machine table

8.Wheels behind of table to help you move materials

9.We use high quality CE passed cables that run many years no broken, the big power trabsformer offer enough power for all electronic parts well. TAIWAN Delta inverter high quality

ATC CNC Router delivery to Australi with package photos

Cutting samples of ATC Wood CNC Router RSKM25-A

Machine warranty and service (especially in Australia):
1. Whole machines 2 years warranty for free and long life time service

2. Spindle motor and other electronic parts 12 month warranty for free

3. Online training and videos are available

4. We have report for every machine sold out so we would like to receive your feedback for every machines after run it

5. We have engineers with passport so can go your company to give you training face to face

6. Egnineer group with every customers you can contact with our engineers directly online

7. 7x24 hours service is available

8.Gloable service is avaialbe ,engineers have passport that can go to your factory for training and service .
