4 Axis Wood CNC Router with Spindle Swing 180 Degree Left and Right

Model:RM-25P
FOB Price:
US $2000 - 6000/ Set Get Latest Price
Min.Order Quantity:
1 Set/Sets
Supply Ability:
900 Set/Sets per Month
Port:
QingDao/YiWu/ShangHai/Guangzhou/NingBo
Payment Terms:
T/T,Western Union,paypal
$0.00
Description
4 Axis Wood CNC Router with Spindle Swing 180 Degree Left and Right
4 axis wood cnc router is with spindle swing 180 degree legt and right direction. It is most popular cnc machine for wood,mdf,plywood,acrylic,pvc etc
hard materials cutting and engraving.
Now this 4 axis wood cnc router price is for promotion

What is advantages of Rhino 4 axis wood cnc router RM-25P :
1. Machine is with 4 axis system and spindle swing left right 180 degree
2. This is popular wood cnc router cutting machine with fast speed could be 40m/min
3. This machine cutting speed for hard wood solid wood cut be 40m/min also
4. Machine with dust collector with dust pipw and dust brush to keep it working in the clean environment
5. Y axis double motor 7NM Z axis one motor X axis one motor for transmission to make sure more stronger
6. Breakpoint specific memory to keep the carving status when power off, processing time forecast and other functions in case of the accidental power outages
7. Professional 4 axis system with Syntec that easy to learn and operate
8. Our this machine support wholesale to all over the world
9. Machine total weight 1000-1300kg with 6mm thickness steel tubes welding for structure
10.Adjust height automatic by legs if your ground is not flat also no problem in working


Main application by Rhino 4 axis wood cnc router:
1. Woodworking industry: three dimensional wave board processing, cabinet door, solid wood door, craft wood door, paint free door, screen, craft fan window processing, shoeshine machine, game machine cabinet and panel, mahjong table, computer table and panel furniture products auxiliary processing.
2. Advertising industry: advertising signs, logo production, acrylic cutting, plastic molding, production of various materials advertising products.
3. Mold industry: can carve copper, aluminum, iron and other metal mold, as well as artificial marble, sandstone, plastic plate, PVC pipe, wood and other non-metal mold.
4. Other industries: it can carve all kinds of large relief and shadow carvings, which are widely used in Arts and crafts industry


Technicinal parameters of 4 axis wood cnc router:
          EXPRESS CNC ROUTER RM-25P
Items parameters
 Working areas X 1300mm
  Y 2500mm
  Z 400mm
Transmission
systems
X Rack gear and pinion drive/German
  Y Rack gear and pinion drive/German
  Z Ballscrew drive/German
Guide rails
system
X Linear square rails/taiwan
  Y Linear quare rails/taiwan
  Z(with spring) Linear square rails/taiwan
 Spindle Power 7.5KW  spindle with left and right rotate 180 degree
  Speed 18000rpm
  Cooling type AIR cooling
  Origin CHINA
 INVERTER Power SUNFAR/FULING 7.5KW
  Origin China
  Optional According requirement
 Drive systems X Servo motor and drivers 850w
  Y Servo motor and drivers 850w
  Z Servo motor and drivers 850w
  origin CHINA
Fixtures Vacuum table with t-slot combination
Machine body M25-pP strong structurer
Software envorionment Windows98/2000/XP
CONTROLLER Syntec 4 axis system
Transmission Original HIWIN20 square rail and helica rack pinion
Compatible files format G code;u00;mmg;plt
Compatible software UcancamV9(wantai)/ARTCAM/CAD/TYPE3
Working voltage AC380V/50-60HZ 3 Phase
Table size 1550*3600mm
Oil system auto lubrification system
Max travel speed 40m/min
Max engraving speed 40m/min
Interface type USB
Dust absorption Dust collector 2 BAGS
Processing material Wood,plastic,glass,metal,stone and so on


Optional functions
1. Linear ATC tool changer 8-20 pcs
2. Disc ATC tool changer 8-20 pcs
3. Rotary attachment with diameter 300mm
4. Other controller like DSP/NK105/Weihong/Mach3 etc

Packing list of 4 axis wood cnc router:
Number Item Quotation
1 New model clamps 10 sets
2 Tools 10 pieces
3 Tool collect 10 pieces
4 Key to release tools 1 set
5 Vacuum pump pipe 1 set
6 Vacuum table rubber seal pipe 1 set
7 Clamps for vacuum pump tube 1 set
8 Vacuum pump 7.5kw 1 set
9 Noise reducer 1 piece
10 Clamps for dust collector tube 1 set
11 Key for control box 1 set
12 Feet black color 6 sets
13 Dust collector double bags new model 1 set
14 Dust collector tube 6 meter 1 piece
15 Syntec system manual 1 set
16 Dust pipe 1 set
17 Tool holders 12pcs
19 Dust brush 1 piece



Detail components for 4 axis wood cnc router

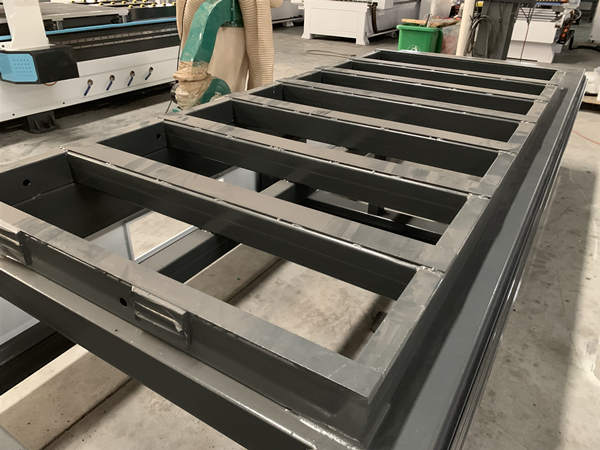

1.Machine frame and table structure


2. Original TBI ball screw for z axis with diameter 32mm and helical rack pinion gear from Taiwan also

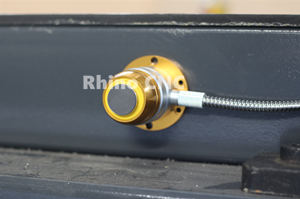

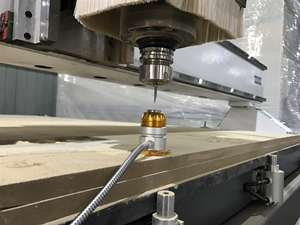

3. Automatic tool sensor device

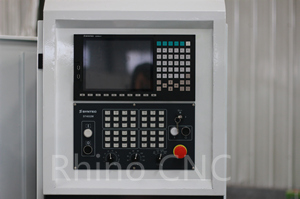

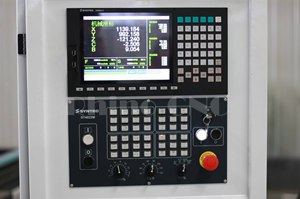

4. Syntec control system 6MB that work 4 axis no problem

5. Automatic spray pump for tools cooling that is good for aluminum working

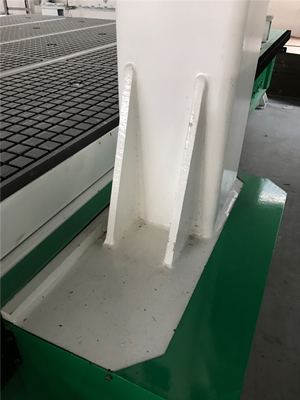

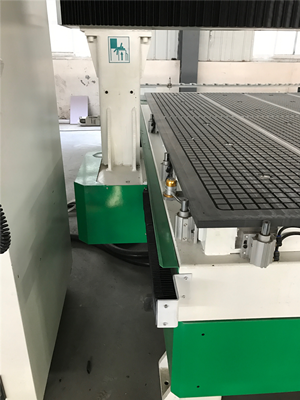

6..Machine steel gantry stronger than others

4axis design we have

3 AXIS designs we have

Cutting and engraving samples:


How Can I buy this machine?
1. We support bank TT/ Western Union/Paypal/Letter of Credit etc payment terms
2. Also you need to let us know all your detail requirements for this machine so that we can confirm it is the best one for you
3. Final PI we will make for you with our company all information and boss signature for your confirmation
4. Once we receive your 30% TT in advance we will start machine production in this period we will share with you production by photos all the time
5. Whrn machine is ready I will send you detail working video and all photos for your checking
6. Once no problem we will delivery as per your request


What is your service for this machine?
1. Whole machine 12 month warranty for free
2. Whole machine service by lifetime no limited
3. Free software update
4. Free information for latest machines
5. Free service online by Whatsapp/Wechat/phone etc
6. Free machine detail operation video and manual in CD
7. Free designes for 2D and 3D cutting


Do you have some customers from my country?
We have agents and office from all over the world like India,Thailand,America,Canada,Mexico,Brazil,Poland,Germany,Turkey,Beriut etc
If you want their contact informations welcome to let us know. After agreed we will arrange them contact you


Do you offer wholesales for this machine?
Yes, if you order more than 3 sets we will have more 10% discount and more than 6 sets we will have 20% discount and one 40ft container can load at most 14 machines no problems. For detail package information welcome to email us to send you all photos.

We only offer high quality CNC Router and Laser machines. We are waiting for your email at anytime !
