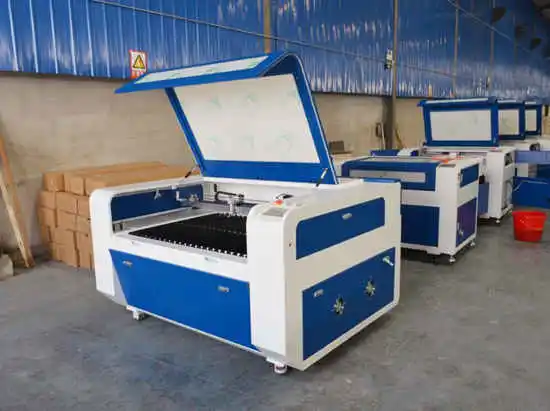

Best 1610 Acrylic Wood Fabric Laser Cutting Machine with Glass Laser Tube

Model:R-1610
FOB Price:
US $1000 - 5000/ Set Get Latest Price
Min.Order Quantity:
1 Set/Sets
Supply Ability:
1000 Set/Sets per Month
Port:
QingDao/YiWu/ShangHai/Guangzhou/NingBo
Payment Terms:
T/T,Western Union,paypal,L/C
$0.00
Description
Best 1610 Acrylic Wood Fabric Laser Cutting Machine with Glass Laser Tube

Machine feature of R-1610 Acrylic Wood Fabric Laser Cutting Machine

1. Machine motherboard: We uses multi-function and high stability motherboard for power supply, and imported components for power supply stability also to increase the life of motherboard.

2. The laser tube we use RECI or YongLi brand with long stability and life, which has small spot and abundant power with warranty 18 month

3. The imported belt ensures the accuracy, also guarantees working stable no need adjust often

4. Design with thick frame make sure more machine is more stronger than others

At the same time, it has the functions of cutting, carving and scanning to achieve multi-purpose machine and wide application industry.

5. Working perfect for cutting and engraving, multi functions

6. With the ultra-fine cutting technology, the cutting accuracy is higher, the curve is smoother and the carving is more fine.

7. High-speed interface, more stable communication, motherboard carrying large capacity memory , can store up to 128 files, easily realize the mass production of 128 different products.

8. Supporting the function of U disk and Wifi both working mode, U disk can copy files from the motherboard, complete full offline operation, improve work efficiency.

9. Have good function of broken point go on working,save time and materials

10. The operation of toolpath can be set on the keyboard, so before real working we can check the toolpath is correct or not in the screen

11. Reflectors and focusing lenses are all imported brand(from USA), which greatly saves the heat loss of laser in air propagation.

12. Adopting YAKO stepper motor and drive system, equipped with high precision PMI linear guide rail and imported ONK 3M belt drive system, the motor drive and guide rail are perfectly combined, which greatly improves the accuracy and speed of the machine.



Working materials


 It can be worked on Wood products, paper, leather, cloth, plexiglass, epoxy resin, acrylic, wool, plastic, rubber, ceramic tile, marble, crystal, jade, bamboo products and other non-metallic materials and other non-metallic materials.



Application area
--- Clothing, embroidery, cloth toys, home decoration, handbags, gloves, leather, leather cutting and surface carving in the toy industry.
--- Precision cutting of non-metallic sheets such as crafts, models, advertisements, decoration, electrical appliances, acrylic sheets and medium density decorative sheets in plastic industry.



Technical Parameters of R-1610 LASER cutting machine

▶ Model

R-1610 laser cutting and engraving machine

▶ Laser type

CO2 laser tube, water-cooled

▶ Laser power

150W laser tube RECI brand

▶ Working area

1600mm x 1000mm (width x length)

▶ Engraving speed

0-6000cm/min

▶ Cutting speed

0-5000cm/min

▶ Repeating location

≤±0.01

▶ Transmission type

Belt transmission ONK from Japan

▶ Driving system

stepper motor YAKO

▶ Machine table

 Open table

▶ Work tabke

Aluminium blade table with up and down table together

▶ Graphic format supported

BMP, HPGL(PLT), JPEG, DXF,AI, DST

▶ Software supported

CorelDraw, AutoCAD, Photoshop, Tajima

▶ Control system

RDCAM software

▶ Working voltage

220V or 110V, 50Hz-60Hz

▶ Applicable Industries:

Kitchen,furniture,electronic components, glass,plexglass, MDF, hardware, acrylic, non metal materials industry,Sign industry etc

▶ Applicable Materials:

Non-metal materials like acrylic,plastic,pvc,wood,colored boards,paper,leather,shells,ABS boards,stone,glass etc

Machine detail components of R-1610 LASER cutting machinie

1. RDCAM 6442 control panel with multi languages for your option like English/Spanish/Russia etc.
Also there have wifi function for your option just need a very little cost

2.Clean inside control box with YAKO driver vertical alignment+control board+file and power supply horizontal arrangement
3. Fast speed laser head with silver coated more easier for fast cutting and engraving not easy to broken

4.The whole machine is dealt with through phosphate antisepesis plastic spraying and back side with two exhuast fan pipe connection hole so that improve exhaust efficiency


5.Aluminum blade working table with scientific structure more stable,every stripes between about 20-50mm so that can load very heavy material no any problem . This machine is with up and down working table .Also we have honeycomb working table for your option price is same

6. We use high quality latest II-VI INFRARED lens with diameter 20mm long life usage and and one piece can be used more than 1 year no problem.There have 50.8/63/5/100mm etc for your option

7. High strength high precision belts for X Y axis make sure machine working no shake and left right sides cutting shape perfectly same for large size working machine

8. Original PMI square rail from TAIWAN for transmission to make sure higher cutting and engraving precision on all kinds of materials like acrylic wood leather fabric plastic pvc etc

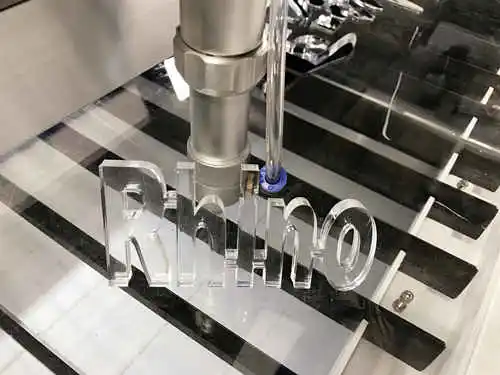

Acrylic cutting samples by R-1290 CO2 Laser cutting machine


Package process of R-1610 laser cutting machine
1. We have professional package persons 3-5 who clean machine inside and outside carefully included rails, belts, motors , control box , laser tube , working table etc
2. Inspector check packing list and prepare all accessories well included exhaust fan, water chiller, air pump,tool box,machine manual , CD etc
3. Remove laser tube from machine and put it into carton box carefully. Because if laser tube installed in machine and easy to broken in transportation
4. Brush oil for rails and cover it with film since there have much moisture on the sea
5. Stick name plate for machine
6. Remove machine on plywood box and cover whole machine with plastic film and package it well then tight it with steel strips
7. Print shipping mark on outside of plywood box for every customer

FAQ:
1. What is laser tube your machine has?
A:we use Reci brand laser tube and also have YONGLI brand laser tube for your option

2. What is warranty of your laser cutting engraving machine R-1290?
A: whole machine 24 month warranty for free and long life time service and laser tube 12 month warranty for free

3. Machine is easy to operate ?A: yes , before delivery we test machine working perfectly and install program well. Also there have detail operation manual and vidoes to guid you. Usually it take 1 days you can learn it perfectly

4. What is good function of your laser cutting engraving machine ?A: our machine has red dot, up and down working table, controller WiFi,auto ducks etc good functions for your option. Welcome to let us know your detail requirements

5. How you delivery this machine ?  A: Usually machine is delivered by shipment on the sea and if you need it urgently we can send by air also but it is a little costly than shipment.

6. What is power water chiller machine use?      A: in our machine 100w laser tube is with CW5000 water chiller and 150w laser tube is with CW5200 water chiller

7. Do your machine have CE certificate?
A: yes , our laser cutting and engraving machine have CE , FDA certificate

8. Can your laser cutting engraving machine cut my materials?A: machine cut wood,MDF,acrylic,plastic,fabric,leather,cloth,all kinds of plastic etc. Welcome to let us know your material so that confirm it.

9. How can I buy this machine ?
A: We support bank tt, western union,LC,DP(especially for Pakistan ) etc

10. What is your payment terms ?
A:our payment terms is 30% tt in advance and 70% tt before machine delivery.

11. Can your engineer come to my country for machine training?
A: It is no any problem. If you need we arrange engineers

More your questions welcome to send email or contact us by wechat/Whatsapp at anytime .
