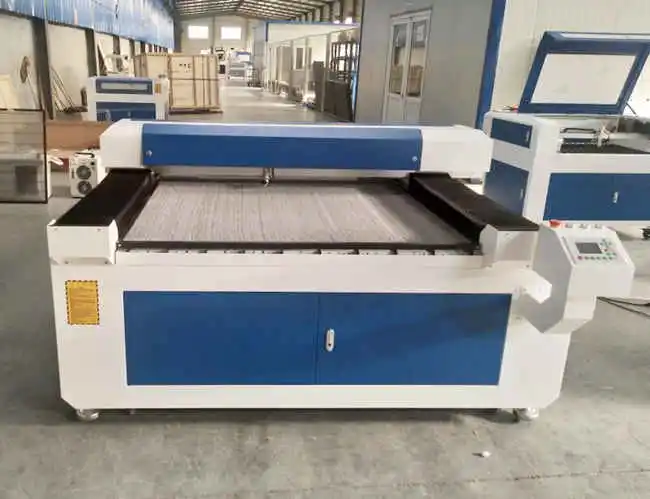

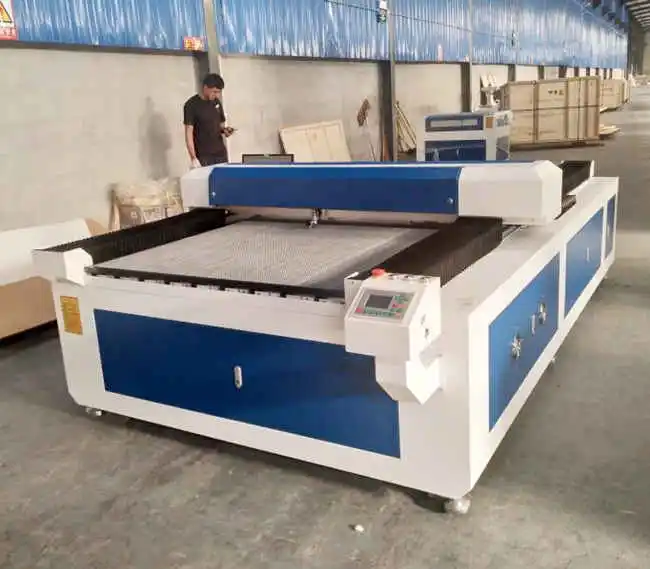

Large Size Co2 Laser cutter 280w for Hard Wood MDF Cutting
Machine feature of Co2 laser cutter 280w R-1530
1. Machine laser Spot is stable cavity structure, good uniform spot pattern, high efficiency
2. Large working size 1500mmx3000mm that can cut any size material no problem
3. American lens and mirror make sure higher precision and long time use
4. Stability: we use TAIWAN PMI square rail and Japan ONK 3M belts, and the quality of the glass tube is controllable
5. Factory direct sales, more favorable
6. Heavy investment, the product is equipped with the United States with fast cutting speed
7. Machine working low noise:scientific mechanical structure reduces machine noise
8. Machine strong frame so that can load more than 800KG product no any problem
9. Two motors for Y axis and One motor for X axis make sure working more smooth without ripple
10. Low cost of operation and maintenance
11. Easy operation:multi-functions like random engraving sequence, processing level, and flexible adjustment output for laser power, speed and focal length partly or completely at one time.
Working materials for Co2 laser cutter 280w R-1530
---Wood products, paper, leather, cloth, plexiglass, epoxy resin, acrylic, wool, plastic, rubber, ceramic tile, marble, crystal, jade, bamboo products and other non-metallic materials and other non-metallic materials.
Working industry
--- Clothing, embroidery, cloth toys, home decoration, handbags, gloves, leather, leather cutting and surface carving in the toy industry.
--- Precision cutting of non-metallic sheets such as crafts, models, advertisements, decoration, electrical appliances, acrylic sheets and medium density decorative sheets in plastic industry.
--- Woodworking business like MDF cutting,hard wood deep engraving, 3D engraving, 2D cutting etc
Detail specification of R-1530 CO2 LASER CUTTER 280W
| ▶ Model |
R-1530 laser cutting and engraving machine |
| ▶ Laser type |
CO2 laser tube, water-cooled |
| ▶ Laser power |
280W laser tube YONGLI brand |
| ▶ Working area |
1500mm x3000mm (width x length) |
| ▶ Engraving speed |
0-6000cm/min |
| ▶ Cutting speed |
0-5000cm/min |
| ▶ Repeating location |
≤±0.01 |
| ▶ Transmission type |
Belt transmission |
| ▶ Driving system |
stepper motor |
| ▶ Machine table |
Conveyor table |
| ▶ Work tabke |
Aluminium blade table |
| ▶ Graphic format supported |
BMP, HPGL(PLT), JPEG, DXF,AI, DST |
| ▶ Software supported |
CorelDraw, AutoCAD, Photoshop, Tajima |
| ▶ Control system |
RDCAM software |
| ▶ Working voltage |
220V or 110V, 50Hz-60Hz |
| ▶ Optional parts: |
Laser tube 80w/100w/130w/150w
Working table honeycomb working table wih up and down function
Red dot function |
| ▶ Warranty service: |
Machine 24 month warranty for free and long life service
Laser tube 12 month warranty for free |
Detail components of R-1530 CO2 LASER CUTTER 280W
1. RDCAM 6442 control panel with multi languages for your option like English/Spanish/Russia etc.
Also there have wifi function for your option just need a very little cost
2.Clean inside control box with YAKO driver vertical alignment+control board+file and power supply horizontal arrangement
3. Fast speed laser head with silver coated more easier for fast cutting and engraving not easy to broken

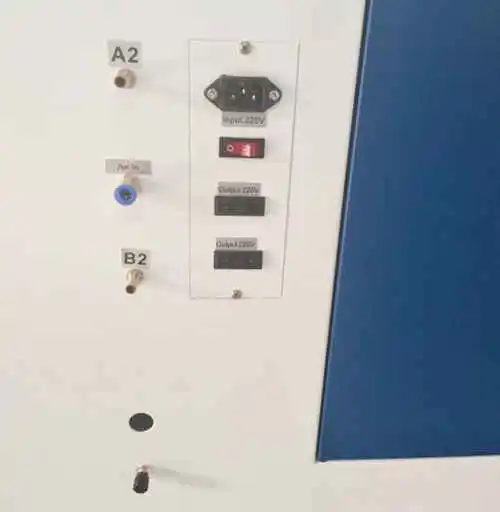

4.Air pump connection ,water chiller connection, European plug or American plug,laser power light etc at behind of machine structure

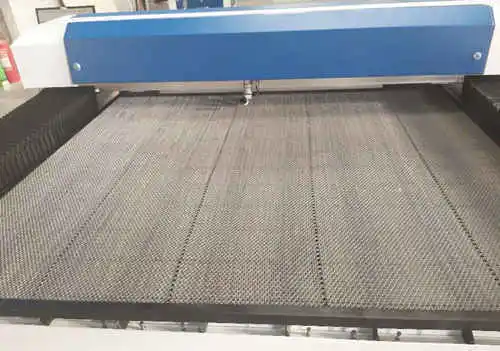

5.Honeycomb working table which is more suitable for wood,mdf,leather,cloth,fabric cutting and engraving.
Also we have Aluminum blade working table and up&down table for your option
6. We use high quality latest II-VI INFRARED lens with diameter 20mm long life usage and and one piece can be used more than 1 year no problem.There have 50.8/63/5/100mm etc for your option
7. High strength high precision belts for X Y axis make sure machine working no shake and left right sides cutting shape perfectly same for large size working machine
8. Original PMI square rail from TAIWAN for transmission to make sure higher cutting and engraving precision on all kinds of materials like acrylic wood leather fabric plastic pvc etc
Also if you have your won requirements for this machine like working table, laser tube,control system etc welcome to let us know by mail or wechat WhatsApp
Cutting samples by R-1530 CO2 LASER CUTTER:
WOOD Deep engraving
WOOD Cutting photos
R-1530 CO2 laser cutter machine pacakge process:
1. We have professional package persons 3-5 who clean machine inside and outside carefully included rails, belts, motors , control box , laser tube , working table etc
2. Inspector check packing list and prepare all accessories well included exhaust fan, water chiller, air pump,tool box,machine manual , CD etc
3. Remove laser tube from machine and put it into carton box carefully. Because if laser tube installed in machine and easy to broken in transportation
4. Brush oil for rails and cover it with film since there have much moisture on the sea
5. Stick name plate for machine
6. Remove machine on plywood box and cover whole machine with plastic film and package it well then tight it with steel strips
7. Print shipping mark on outside of plywood box for every customer
FAQ:
1. What is laser tube your machine has?
A:we use Reci brand laser tube and also have YONGLI brand laser tube for your option
2. What is warranty of your laser cutting engraving machine R-6040?
A: whole machine 24 month warranty for free and long life time service and laser tube 12 month warranty for free
3. Machine is easy to operate ?A: yes , before delivery we test machine working perfectly and install program well. Also there have detail operation manual and vidoes to guid you. Usually it take 1 days you can learn it perfectly
4. What is good function of your laser cutting engraving machine ?A: our machine has red dot, up and down working table, controller WiFi,auto ducks etc good functions for your option. Welcome to let us know your detail requirements
5. How you delivery this machine ? A: Usually machine is delivered by shipment on the sea and if you need it urgently we can send by air also but it is a little costly than shipment.
6. What is power water chiller machine use? A: in our machine 100w laser tube is with CW5000 water chiller and 150w laser tube is with CW5200 water chiller
7. Do your machine have CE certificate?
A: yes , our laser cutting and engraving machine have CE , FDA certificate
8. Can your laser cutting engraving machine cut my materials?A: machine cut wood,MDF,acrylic,plastic,fabric,leather,cloth,all kinds of plastic etc. Welcome to let us know your material so that confirm it.
9. How can I buy this machine ?
A: We support bank tt, western union,LC,DP(especially for Pakistan ) etc
10. What is your payment terms ?
A:our payment terms is 30% tt in advance and 70% tt before machine delivery.
11. Can your engineer come to my country for machine training?
A: It is no any problem. If you need we arrange engineers
More your questions welcome to send email or contact us by wechat/Whatsapp at anytime
