6090 CNC Router for Wood Metal Glass Working
R-
6090 CNC Router for Wood Metal Glass PVC Plastic MDF etc. It is mainly used in decoration,molds,sign,artcraft etc.
It is with powerful functions like cutting,engraving,milling,drilling etc will give you good solution with reasonable price.
Machine accessories of R-6090 CNC ROUTER
1. Machine itself 1 set
2. Data cables 1 piece
3. Tool collect 3.175mm/4mm/6mm/8mm/10mm/12.7mm 6 pieces
4. Engraving tools 15 pieces
5. Spindle tools 2 pieces
6. Water pump 1 piece
7. Software in CD 1 piece
8. Machine manual in CD 1 piece
9. Clamps 10 pieces
10. Power cable 1 piece
11. Artcam software in CD 1 piece
Main features of R-6090 CNC ROUTER
1. Our CNC Router R-6090 is heavy structure one with whole cast iron body
2. Net weight 500kg more stronger to make sure more stable in aluminum,steel,golden,silver milling with high precision
3. Increasedt working table height 80cm to more suitable to operate machine and watch the working details
4. Scientific structure to make sure no water leakage on rails
5. Stainless steel water slot with height 20-30cm then no water splash outside
6. Cast iron moving working table is much better for hard metal fix no damage
7. Working table and machine structure connection perfectly with thick steel then no shake in working
8. LED light with 20w-100w as per your requirement is more easier in night working
9. Two fans inside of control box to speed up heating outside
10. Famous electronic parts inside of control box to make sure machine working more safe no failure
11. Control system DSP/Ncstudio/Mach3 three types for your option
Main components instruction of small cnc milling machine R-6060
1. Linear rails: we use famous top quality TAIWAN Original HIWIN brand with 20 size for XY transmission
2. Rails block: we also use the same brand original HIWIN20 high level block
3. Ball screws: Top quality TBI ball screws for XYZ axis with diameter 32mm more stronger to make sure higher accurate
4. Spindle motor: we use 4 bearing water cooling spindle with HQD brand top one in China that is more professinal for metal working( we have 2.2kw and 3.0kw for your option)
5. Cables: we use germany technology 6 lines strong cable to make sure long time use to broken
6. Motos: we use stepper motor 450B with 7NM for working
7. Driver: Leadshine 860H original stepper motor for working (also the servo motor and hy brid servo motor for your option)
8. Inverter: we use Fuling or Sunfar top quality inverter in China
9. Automatic tool sensor: it is available to help customer test the distance between tool point and materials surface
10. Filter and power supply inside of control box also good brand in market
Optional parts of small cnc milling machine R-6060
1. Spindle motor--we have 2.2kw and 3.0kw with single head and multi heads for your option
2. Motor and drivers--we have hy brid servo motor and drivers and Japan Yaskawa/Panasonic servo motor and drivers and Taiwan Delta servo motor and drivers and Chinese leadshine true servo motor and drivers for your option
3. Control system--- DSP with handle/ Ncstudio with computer and handle wheel/ Mach3 with handle wheel for your option
4. Working size---300mmx300mm/400mmx400mm/600mmx900mm three different size for your option
5. Rotary attachment-- this machine can add rotary with diameter 100mm/150mm no problem
Machine detail photos:
Machine detail components:
1. XYZ three axis TBI ball screws with diameter 32mm
2. Cast iron table with moving type make sure milling better precision + table four sizes fixed more tightly
3. Whole cast iron parts especially the moving table with T-SLOT stronger for metal materials working
4. Stepper motor and drivers Leadshine 860H with motor 7NM and two fans inside of control box
5. Advanced automatic tool changer to help you check distance between tool point and material surface
FAQ :
1. Are you a real factory or trading company?
A: We are manufacture in China more than 15 years that professional for cnc milling machine and other cnc laser machines production.Welcome you visit us at anytime~
2. What is warranty you have?
A: Whole machine 2 years warranty for free and long life time service. Within 2 years any part broken we will send a new one to you for free
3. What is difference 3 axis and 4 axis machine ?
A: 3 axis cnc machine is mainly for surface milling,cutting,engraving and 4 axis is with A axis can work flat and rotary both perfectly.
If with 4 axis system it is good for large produst milling and complicated details no problem.
4. What is different 1.5kw/2.2kw/3.2kw?
1.5kw spindle tool collect max is 6mm but 2.2kw and 3,2kw max tool collect could be 12.7mm. And 2.2kw/3.0kw power is more bigger for milling and cutting,engraving etc.
5. How you inspect this machine?
A: Every machine before delivery we check its working 24 hours continued and inspect all detail parts carefully make sure no any mistake.

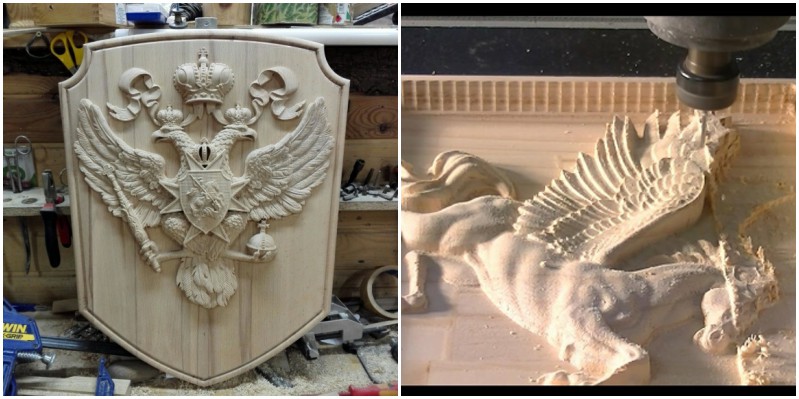

Milling samples by R-6060
How we package and delivery this machine
Rhino CNC Machine package process: This cnc router R-6090 height z axis is 200mm and the total package size L*W*H is 1.4m*1.4m*1.8m
Firstly machines are inspected by engineers make sure no any problem then we have special workers who are professional for machine pacakge. We use plastic film cover machnes to avoid moisture on the sea then we use strong stap to tight machine all components well like gantry,table,dust collector and control panel etc. Then we will move it on the plywood bottom bracket. Setting it in the proper location then use air nail to fix machine legs well on the bracket. It will take about 1-2 hours then we make a full package with plywood box. Finally we use steel strap tight the whole plywood box and print shipping mark and something else as per customer requirement on outside of box. Now the whole process is finished well and it will take 2-3 hours to package it perfectly.
Welcome to send your detail requirements to us by mail at anytime!~
