High Precision Metal CNC Router R-6060S for Aluminum Steel Mold Making
This is Rhino highest accuracy metal mold cnc router that precision could be reach 0.03mm. It adopt whole cast frame like table and gantry full cast iron, Leadshine 850w bus servo and germany TBI ball screw 32mm to make sure the good milling precision.
Original 95A control system work well to offer you the good cutting,engraving,milling,drilling cnc router for metal !
In a word, this is a metal cnc router but same good high precision working performance as metal cnc lathe already .
Main components of Metal CNC Router R-6060S :
1. Moving table processing area:600*600mm and 400mmx400mm for option
2. Feed height: 150mm-200mm
3. Spindle motor: HQD 3KW water-cooled spindle (0-24000 rpm) also have bigger power 7.5KW with BT40 tool holder
4. Bed structure: table, beam, side plate cast iron structure/body supporter welding structure
5. Stainless steel water tank for water recycle
6. Inverter: BEST 4.0KW Best Inverter
7. HIWIN20 square rail from TAIWAN
8. Transmission mode: XYZ axis ball screw 3210 with diameter 32mm TBI brand from Germany
9. Motor: Original leadshine 750W bus absolute value 23-bit servo motor
10. Drive: Original leadshine 750W bus absolute value 23 bit servo drive
11. Control system: Original Weihong 95A three-axis control system
12. Distribution box: independent computer cabinet
13. Table: T-slot cast iron bed
14. Oil injection system: pneumatic hydraulic oil injection system |
Features of Metal CNC Router R-6060S :
1. Ultra-high precision and micro-machining capabilities
High-rigidity mechanical structure cast iron and closed-loop feedback system bus servo motor drivers are used to achieve ±0.03mm machining accuracy, meeting the micro-holes, narrow slits, and curved surfaces of precision molds.
2. Adaptability to complex structure processing
Multi-axis linkage technology: supports five-axis ( 5 axis) linkage processing, which can complete the engraving of special-shaped mold structures such as deep cavities and undercuts without dead angles.
Intelligent toolpath: The software automatically optimizes the tool path, reduces empty strokes, and improves the processing efficiency easily.
3. Multi material compatibility
Hard metal processing: suitable for hardened steel (such as SKD11, H13), stainless steel, titanium alloy and other high-hardness mold materials like aluminum copper etc.
Anti-wear design: equipped with high-durability tools (such as diamond-coated tools) to extend tool life.
4. High Stability and durability
Vibration resistance and temperature control: The machine tool adopts a mineral casting bed and a constant temperature cooling system to suppress thermal deformation and vibration and ensure long-term processing stability.
Core component life: Imported spindle/guide rail, with a design life of more than 20,000 hours, reducing maintenance costs.
5. Environmental protection and safety
Energy-saving design: low-power standby mode, waste recycling system,conform to green manufacturing standards.
Safety protection: fully enclosed protective cover, emergency stop device, laser safety certification (such as CE, FDA Class 1) that can export to Europe easily.
Optional parts of metal cnc router R-6060S :
1. Machine working table: 400mmx400mm for option
2. Spindle motor--we have 2.2kw and 3.0kw or 7.5kw BT40 with single head and multi heads for your option
3. Motor and drivers--we have hy brid servo motor and drivers and Japan Yaskawa/Panasonic servo motor and drivers and Taiwan Delta servo motor and drivers and Chinese leadshine true servo motor and drivers for your option
4. Control system--- DSP with handle/ Ncstudio with computer and handle wheel/ Mach3 with handle wheel/ Syntec 60WE for your option
5. Rotary attachment-- this machine can add rotary with diameter 100mm/150mm no problem |
Machine Application Industry
| Metal mold area like shoes molds making Jewelry &Artistry:Intricate designs on rings,pendants Electronics and Electrical Industry like mobile phone
and shoes accessories making Luxury accessories using gold,silver or platinum et Cover,accessories cutting engraving etc
|
| Coins making in sign business Metal sculptures making like characters and animals Jade engraving and cutting with high precision |
Other area :
Automotive Manufacturing
Engine components, gearbox molds, interior trim parts, and customized metal logos.
Electronics & Appliances
Precision molds for smartphone casings, micro connectors, and heat dissipation modules.
Aerospace & Defense
High-tolerance parts like turbine blades, missile components, and lightweight alloy structures.
Medical Devices
Surgical tools, implants (e.g., titanium joints), and sterilizable equipment housings.
Packaging Industry
Molds for bottle caps, cosmetic containers, and embossed branding on metal packaging.
Architecture & Hardware
Decorative metal panels, door handles, and custom hardware fixtures.
Energy Sector
Wind turbine molds, drilling tooling, and corrosion-resistant parts for nuclear facilities.
Prototyping & R&D
Custom prototypes, material testing, and educational projects in engineering institutes.
Machine detail components:

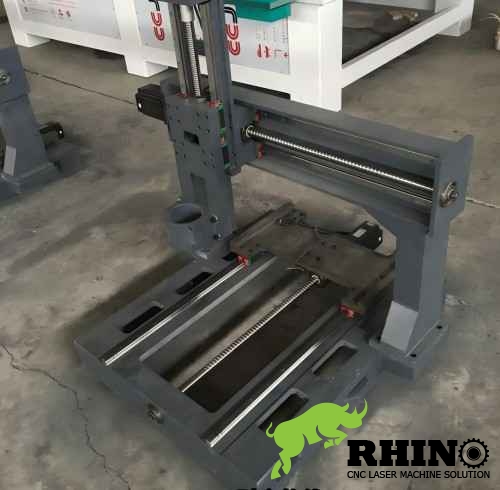

1. Whole cast iron body -- table + gantry to make sure working precision best
2. Rotary attachment with machine for 4 axis working
3. XYZ three axis TBI ball screws with diameter 32mm made in Germany TBI brand
4. Cast iron table with moving type make sure milling better precision + table four sizes fixed more tightly
5. TAIWAN Original HIWIN20 sqare rail with Germany TBI ball screw 30mm make sure milling precision 0.1-0.01mm n
6. Close loop bus servo motor drivers with 32-bit and DSP& NC95A control system handle connection
7. Advanced automatic tool changer to help you check distance between tool point and material surface
Milling samples by metal cnc router R-6060S :
How we package and delivery this machine
FAQ :
1. Are you a real factory or trading company?
A: We are manufacture in China more than 15 years that professional for metal cnc milling machine and other cnc laser machines production.Welcome you visit us at anytime~
2. What is warranty you have?
A: Whole machine 2 years warranty for free and long life time service. Within 2 years any part broken we will send a new one to you for free
3. What is difference 3 axis and 4 axis machine ?
A: 3 axis cnc machine is mainly for surface milling,cutting,engraving and 4 axis is with A axis can work flat and rotary both perfectly.
with 4 axis system it is good for large produst milling and complicated details no problem.
4. What is different 1.5kw/2.2kw/3.2kw?
1.5kw spindle tool collect max is 6mm but 2.2kw and 3,2kw max tool collect could be 12.7mm. And 2.2kw/3.0kw power is more bigger for milling and cutting,engraving etc.
5. How you inspect this machine?
A: Every machine before delivery we check its working 24 hours continued and inspect all detail parts carefully make sure no any mistake.
Welcome to send your detail requirements to us by mail at anytime!~
